AluClik Louver System: Fast, Flexible Installation for Interior and Exterior Surfaces

The AluClik louver system was developed to address a common challenge in commercial and public building projects: the need for a high-quality architectural louver surface that can be installed quickly and cost-effectively, without sacrificing the finish quality expected in prominent interior and exterior applications.

Its defining feature is a snap-on installation mechanism developed by Alupro, which allows louver blades to be assembled on site without tools in a fraction of the time required by conventional fixed systems. This guide explains how AluClik works, where it is appropriate, and the specification considerations that apply.

The Snap-On Principle

AluClik louvers are designed around an interlocking blade-and-rail system. Individual louver blades clip onto mounting rails that are fixed to the substrate. Once the rails are in position, the blades can be attached quickly and consistently without screws or adhesives. The result is a clean, uniform surface with no visible fixings.

AluClik can be installed both horizontally and vertically, giving designers flexibility in the orientation of the blade pattern to suit the architectural intent.

Applications: Where AluClik Fits

AluClik is used across a wide range of commercial and public building applications. Shopping centers and retail environments use it to create feature wall surfaces, ceiling treatments, and ventilation screening elements that match the visual language of the space. Office buildings and corporate lobbies use it for reception area feature walls and corridor screening. Public buildings—airports, transportation hubs, sports facilities—use it where a large louver surface area must be installed efficiently within a tight construction programme.

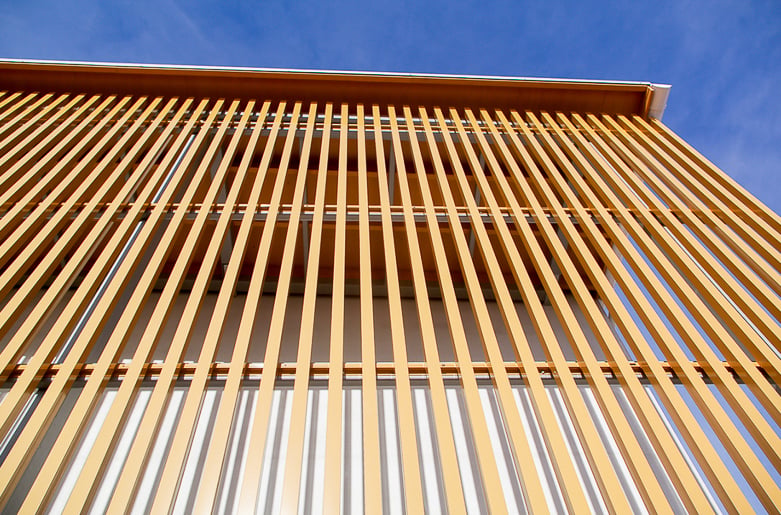

The system is equally applicable to exterior facade use, where it provides a distinctive and customizable louver surface on building envelopes, car park facades, and utility enclosures. Its ability to be specified in vertical orientation opens up design possibilities not available with standard horizontal louver systems.

Available Profiles and Materials

AluClik is available in several standard blade profiles, including AluClik-1 (25×50 mm), AluClik-4 (50×65 mm), and AluClik-8 (120×100 mm). Each creates a different visual rhythm and optical density. Smaller profiles produce a finer, denser surface; larger profiles create a more open surface with prominent shadow lines and a stronger three-dimensional quality.

Standard AluClik louvers are manufactured from extruded aluminium and finished with powder coating in the full RAL color range. This provides a consistent, weather-resistant surface in any required color. Custom colors can be matched for projects where specific brand or palette requirements apply.

Specification Considerations

AluClik is a surface treatment system rather than a structural element—it is designed to be mounted on an appropriate substrate that provides the primary structural support. The design of the substrate is the responsibility of the project's structural engineer.

For large surface areas, the assembly approach simplifies logistics. Rails and blades can be transported and handled in manageable sections and assembled progressively on site, without the need for heavy lifting equipment.

Where AluClik is used as a ventilation screening element—covering openings for HVAC or mechanical plant—the blade profile and spacing should be selected to provide sufficient free area for the design airflow. Our team can advise on profile selection for ventilation applications.

Frequently Asked Questions

Is AluClik suitable for exterior use?

Yes. Powder-coated aluminium AluClik louvers are designed for both interior and exterior applications. For coastal or exposed exterior locations, discuss material and finish selection with our team to ensure the specification is appropriate for the specific environmental exposure.

Can blades be replaced individually if damaged?

Yes. The snap-on installation system allows individual blades to be removed and replaced without disturbing adjacent sections. This is one of the key practical advantages of the AluClik system in high-traffic public spaces.

What is the maximum surface area that can be covered in a single installation?

There is no inherent maximum surface area. The modular system allows coverage of large areas by assembling multiple rail sections. For very large installations, we recommend early engagement with our design team to plan the module layout and coordinate with the substrate design.

Are technical drawings available for BIM coordination?

Product documentation including installation drawings and technical specifications is available from the Alupro product catalogue. Contact our team to discuss BIM coordination requirements for specific projects.
